GH-360
Main technical parameters
• Packing speed: 30-50 pieces/min
• Package size: (L * W * H) (50-280mm) * (40-220mm) * (6-90mm)
• Power consumption: 5.6kw Max
• Voltage: 220V/50HZ
• Working pressure: 0.6mpa
• Weight: about 650kg
• Machine size: 2600mm*930mm*1700mm
• Conveying size: 1500mm*320mm*1000mm
• Additional services: Lid: easy to open service
Description

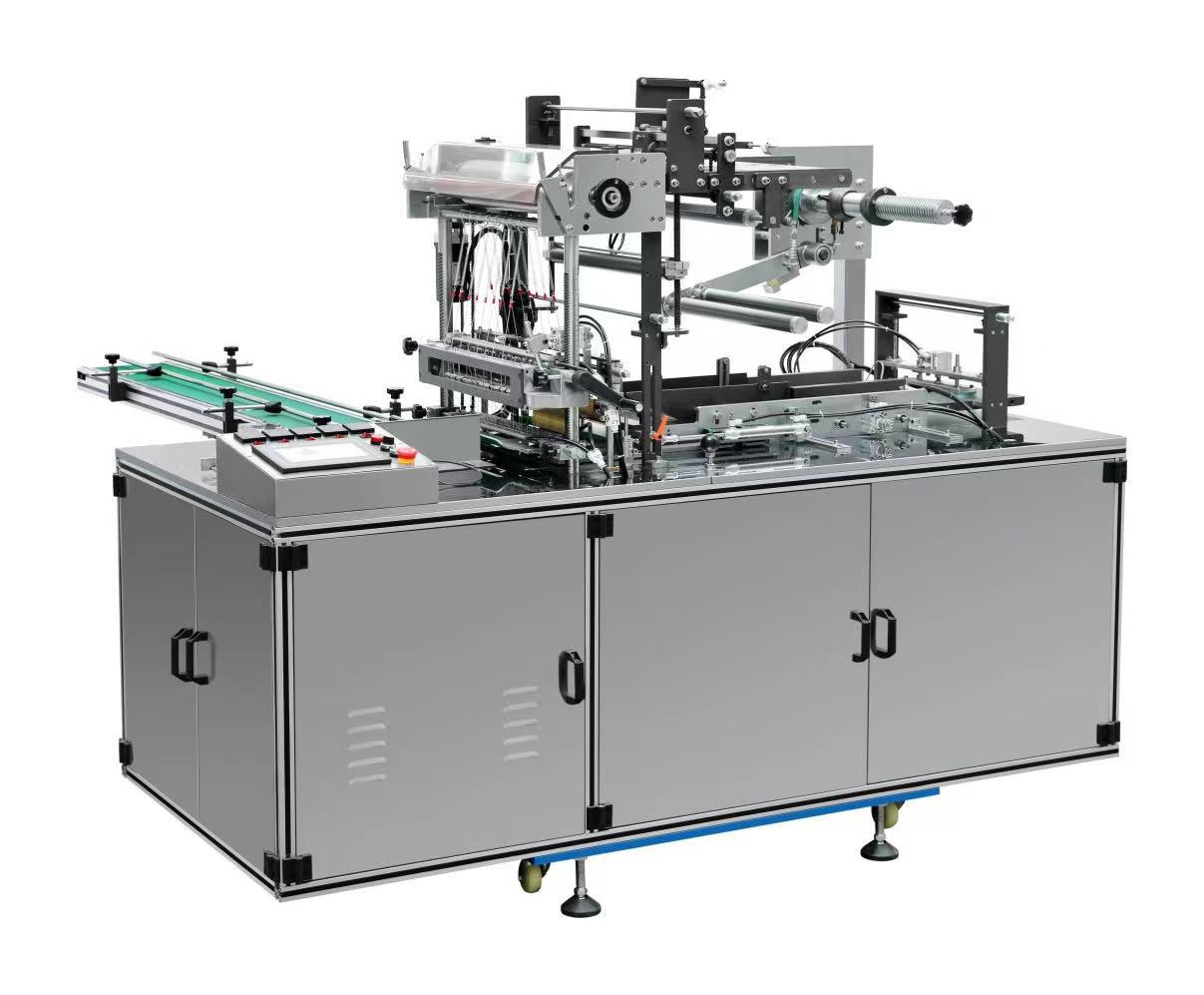

GH-360 is a new three-dimensional transparent film packaging machine improved on the basis of the existing binary improvement machine, equipped with PLC control system, servo drive system, high-quality pneumatic unit, can fully adapt to the automatic ironing flat, speed adjustable, power using PLC control, the main transmission components using mechanical action control, servo motor drive film feeding, using pneumatic components, Due to its convenient and quick adjustment function, it can easily replace the molds that pack various sizes of box-shaped products, and the production process is stable, which improves the production efficiency of the enterprise and reduces the waste of materials.
